chocolate enrobing machines

Name: chocolate enrobing machines
Uploaded: 2025-06-26T09:52:44+08:00
Duration: 1 min 22 s

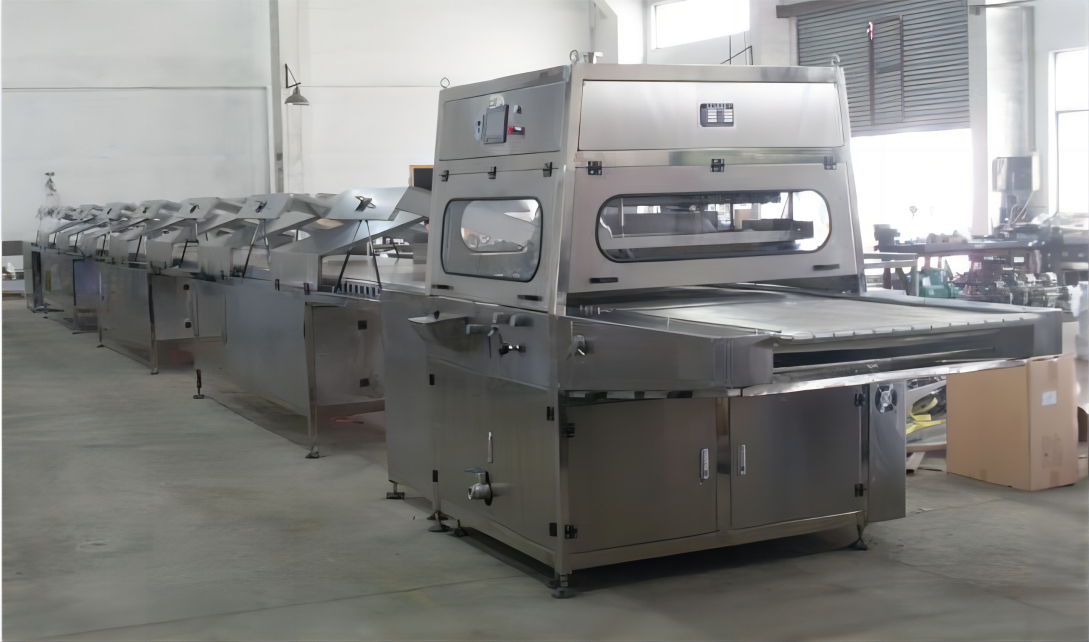

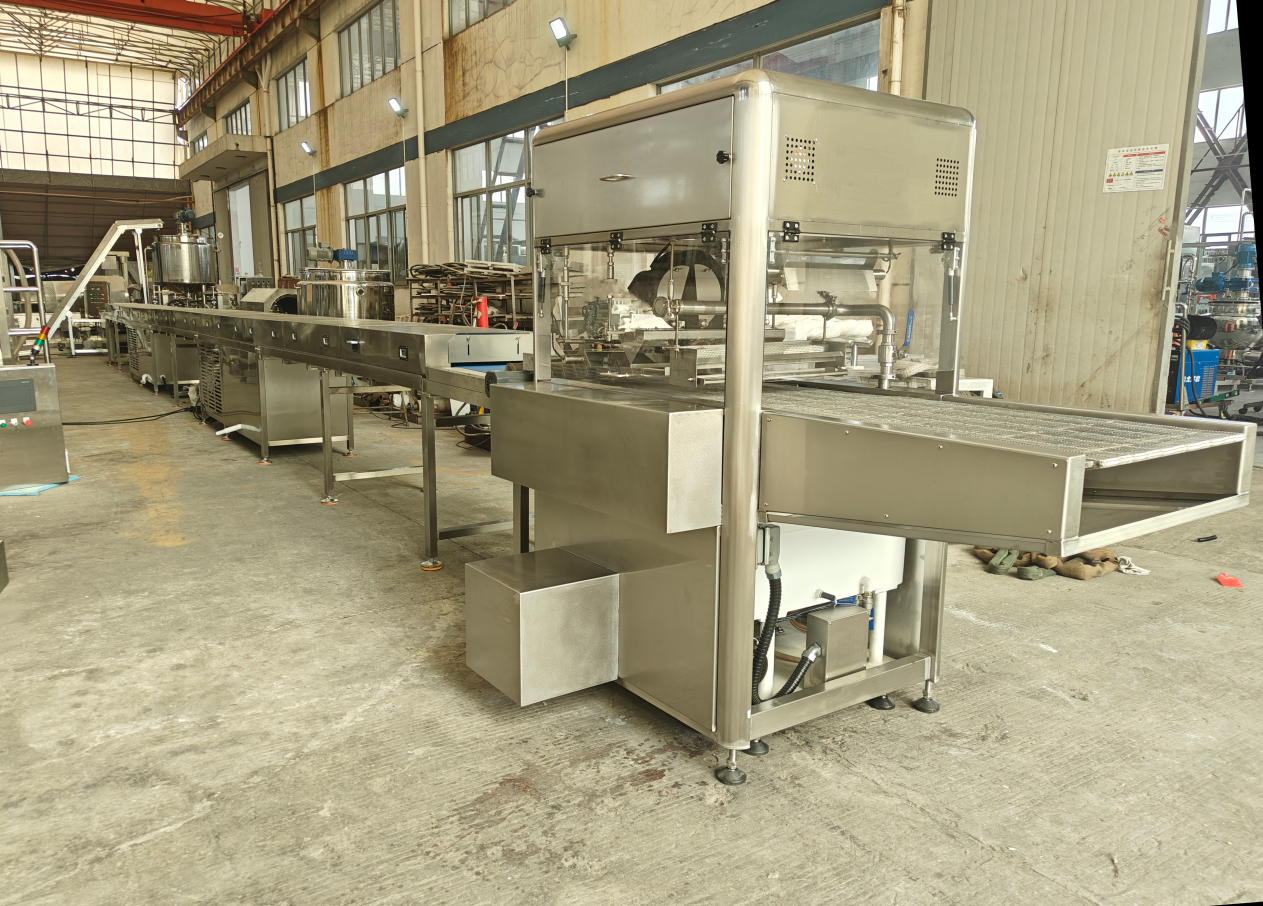

Description: This series of chocolate enrobing machines are specialized equipment for producing colorful chocolate products. It can pour chocolate on the surface of pastries, cookies, wafers, candies, and other products, forming a variety of chocolate products with unique flavors.

This series of chocolate enrobing machines are specialized equipment for producing colorful chocolate products. It can pour chocolate on the surface of pastries, cookies, wafers, candies, and other products, forming a variety of chocolate products with unique flavors.

SEND INQUIRY NOW

Product Details

This machine has the functions of full coating, bottom coating, and partial coating, and is a specialized equipment that integrates coating and cooling.

Model	CTC400	CTC600	CTC800	CTC1000	CTC1200
Wiremesh width	400mm	600mm	800mm	1000mm	1200mm
Belt speed	1-6m/min	1-10m/min	1-10m/min	1-10m/min	1-10m/min
Cooling tunnel length	10m	14m	18m	20m	22m
Chiller	2*3P	3*3P	2*5P	3*3P	customized
Cooling temp (℃）	2-10	2-10	2-10	2-10	2-10
Power (kw)	12	18.5	20.5	23.8	27.8
Weight (kg)	2000	2450	3400	3800	4100
Machine size(mm)	120009501500	1820011501500	2000014501500	2200014501500	2620017501500

Material hopper underneath the enrobing head is able to be pulled out for cleaning;

Enrobing head delivery belt, cooling tunnel belt, the chocolate pastes delivery pump as well as the pastes blowing fan are all with frequency control;

For avoiding material overflow, there are liquid level controllers installed on the material hoppers;

Machine main material: Stainless steel enrobing head, pipes, pump, cooling tunnel frame, machine covers and cooling tunnel covers. The covers used as insulation purpose have high-density foam in the middle of the stainless steel bended covers.
