Advance Gummy Production Line
VR
  • Product Details

FAQ

1.Can Your products be installed under the cold weather?
Yes, there is not any requirement for kitchen unit, but for forming or cooling unit, some of the machine need to be placed in a air conditioned room.
2.How many staff abroad you sent to install the equipment?
There are 18 engineers have passport and can get visa easily to come for installation.
3.Can I transfer the money to you then you pay to other supplier?
Yes, it is possible, we can help to source  or just  help to pay your supplier.

About SINOFUDE

Shanghai Fude Machinery Manufacturing Co., Ltd., formerly known as Shanghai Chunqi Machinery Factory, belongs to Bory Industrial Group. It is located in Huqiao Town Industrial Park, Fengxian District, Shanghai, with convenient transportation and beautiful environment. The company brand name SINOFUDE was founded in 1998. As a well-known food and pharmaceutical machinery brand in Shanghai, after more than 20 years of development, it has developed from one factory to three factories with a total area more than 30 acres and more than 200 employees. SINOFUDE introduced the ISO9001 management system for management in 2004, and most of its products have also passed the EU CE and UL certification. The company's product range covers all kinds of high-quality production line for chocolate, confectionery, and bakery production. 80% of the products are exported More than 60 countries and regions in Europe, America, Southeast Asia, Eastern Europe, Africa, etc.

Sinofude is a Biggest machinery processing factory based in shanghai, we mainly focus on the production line equipment and technologies of the Gummy making Machine.We offer complete production lines or individual machinery to produce your edible or pharma gummy.

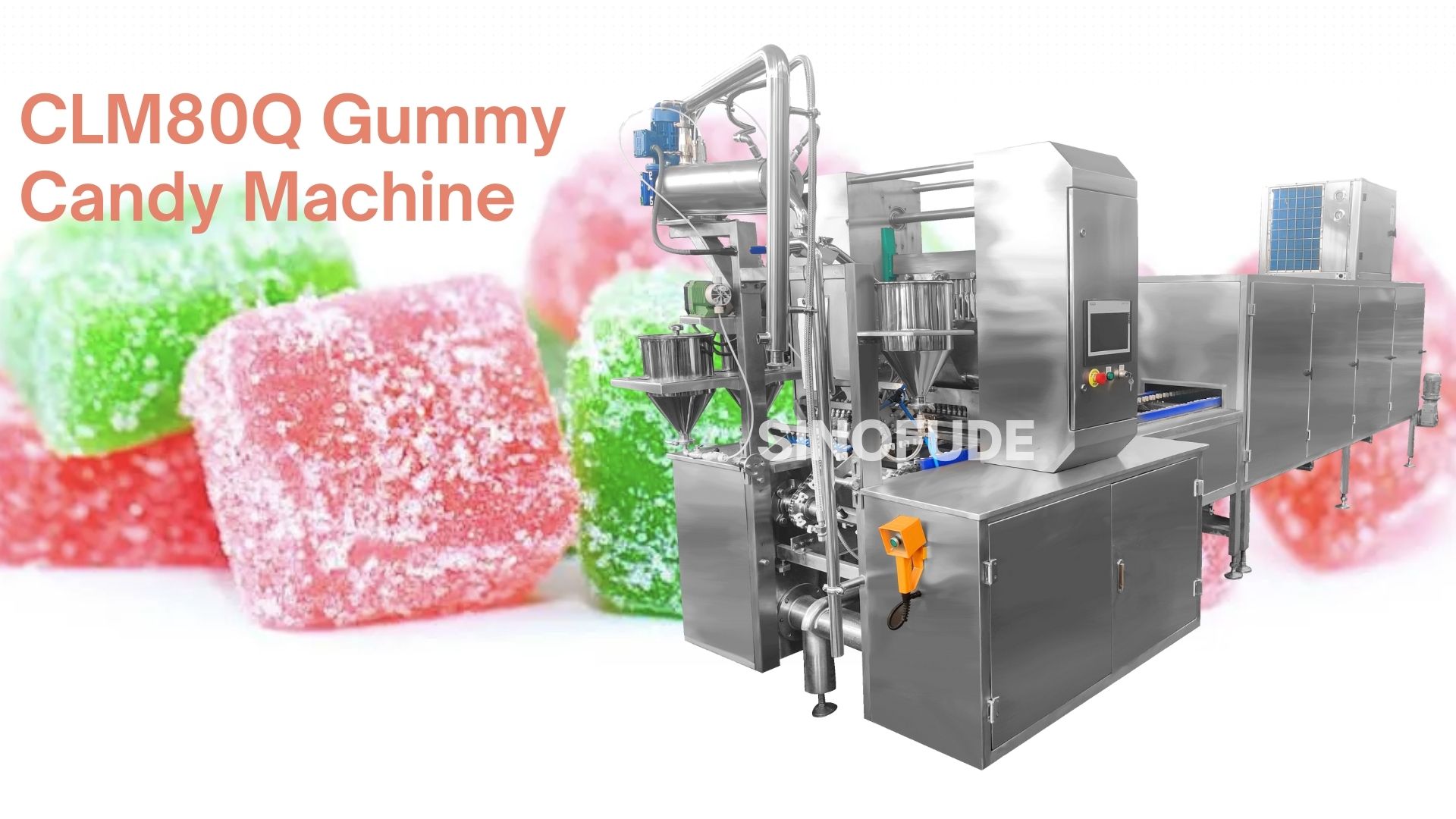

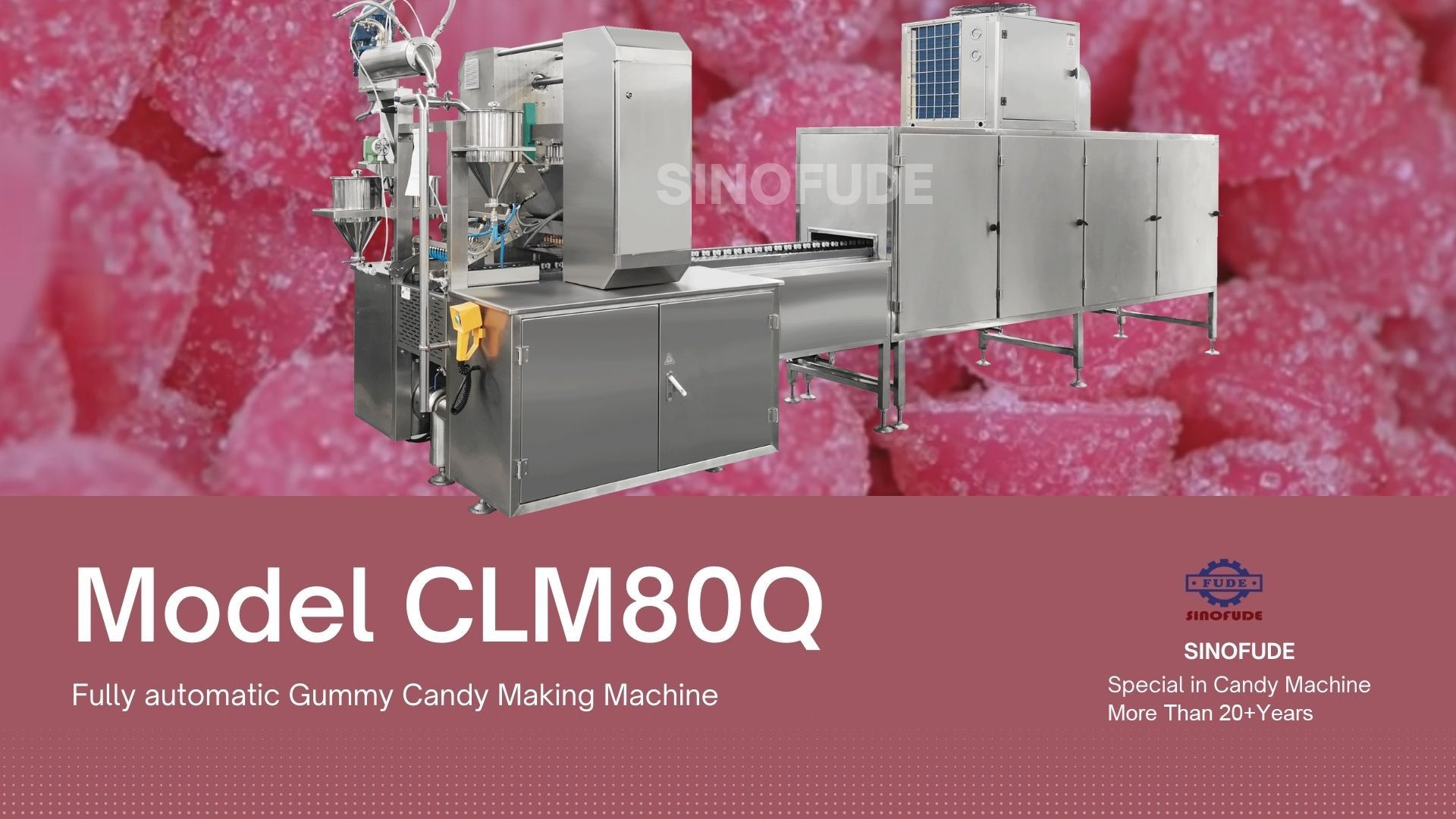

CLM80Q Gummy Candy Production line

This machine line is an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied. This depositing line consists of jacket dissolving cooker, gear pump, storage strainer, storage tank, discharging pump, color & flavor jigger, color & flavor mixer, cooling tunnel, electric control cabinet, etc.



CLM80Q compact gummy candy production line capacity up to 80kg/per hour,its suitable for small scale factory. it easily making various flavors of gummies candies.



CLM80Q gummy making machine

30000-36000pcs gummy candy per hour

50-80kg/h


ModelCLM80Q
Capacity (kg/h)Upto 80
Depositing stroke (Pcs)20-55times
Pcs of molds Short type Long type160
Chilling Capacity10PH
Length of the whole line (m)8-10m
Electric power needed12-40kw
Compressed air consumption Compressed air pressure0.5m3/min 0.4-0.6 Mpa
Gross weight (Kgs)Approx. 4500

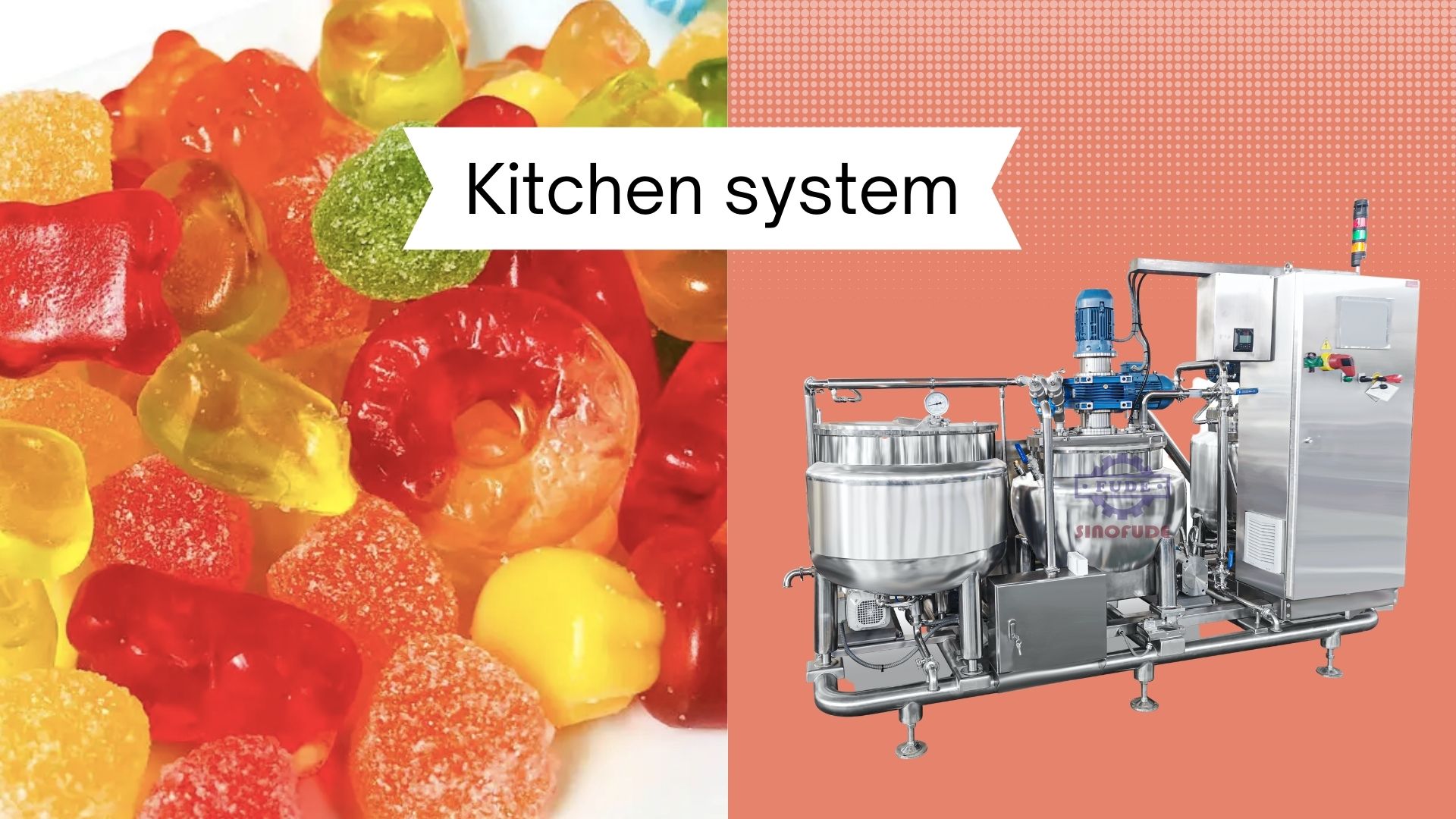

Kitchen system



Jacketed kettle can simply dissolve various raw materials to achieve a fully and efficiently mixed state, which the step will get the syrup.

It can be used to cook candy syrup, dissolve gelatin, and store the syrup to guarantee continuous working.

Pectin☑ Gelatin☑


Depositing and cooling Unit

The system is completely intelligently controlled, and the syrup is evenly dripped into the mold cavity. candies with molds will automatically transferred to the cooling system to achieve solidification at a low temperature, and finally demolded.


Depositing unit

1. Servo depositing

2. Automatic oil spraying system,

3. Automatic demoulding.

3. Color and flavor-adding system.

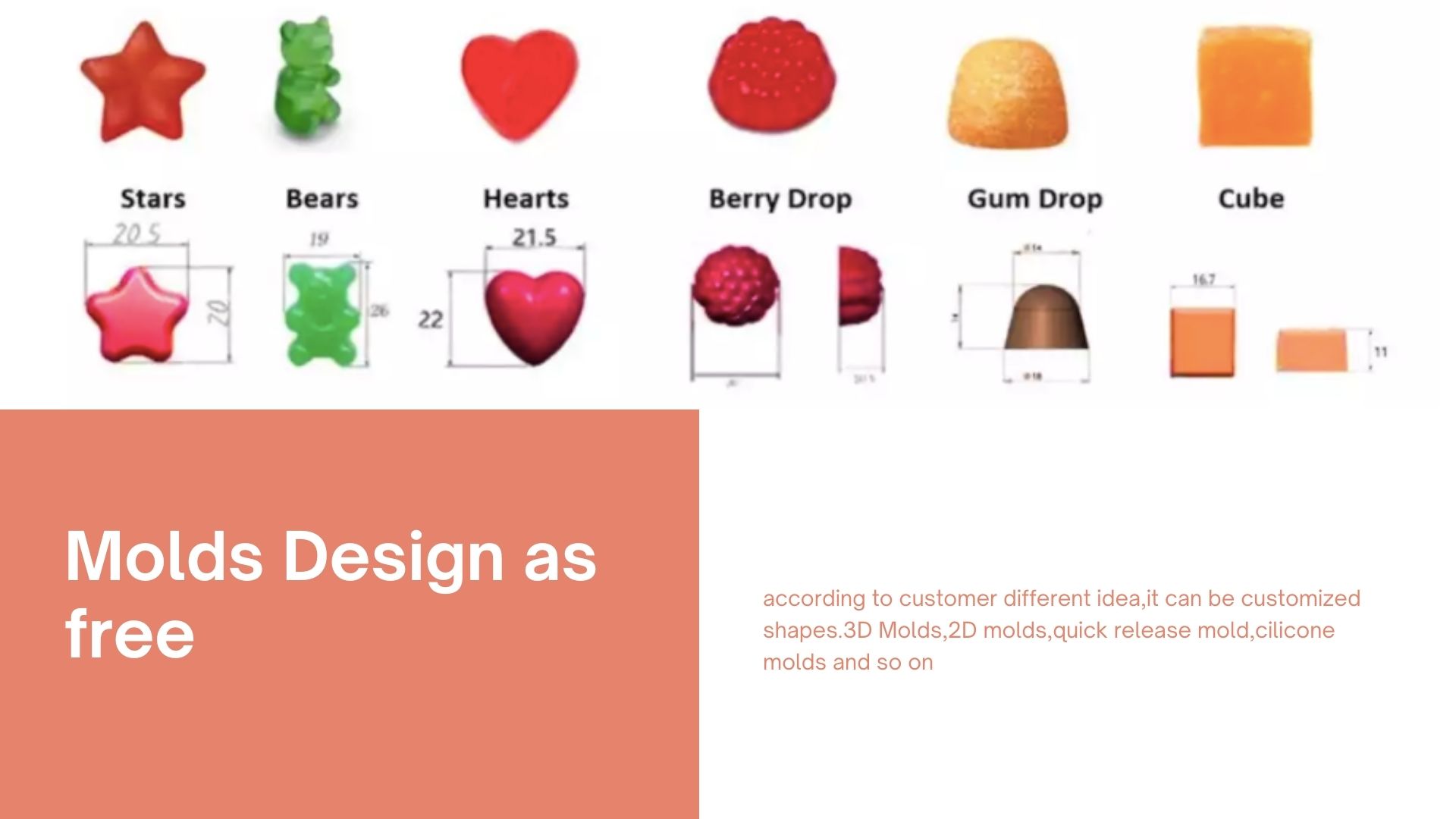

Molds
