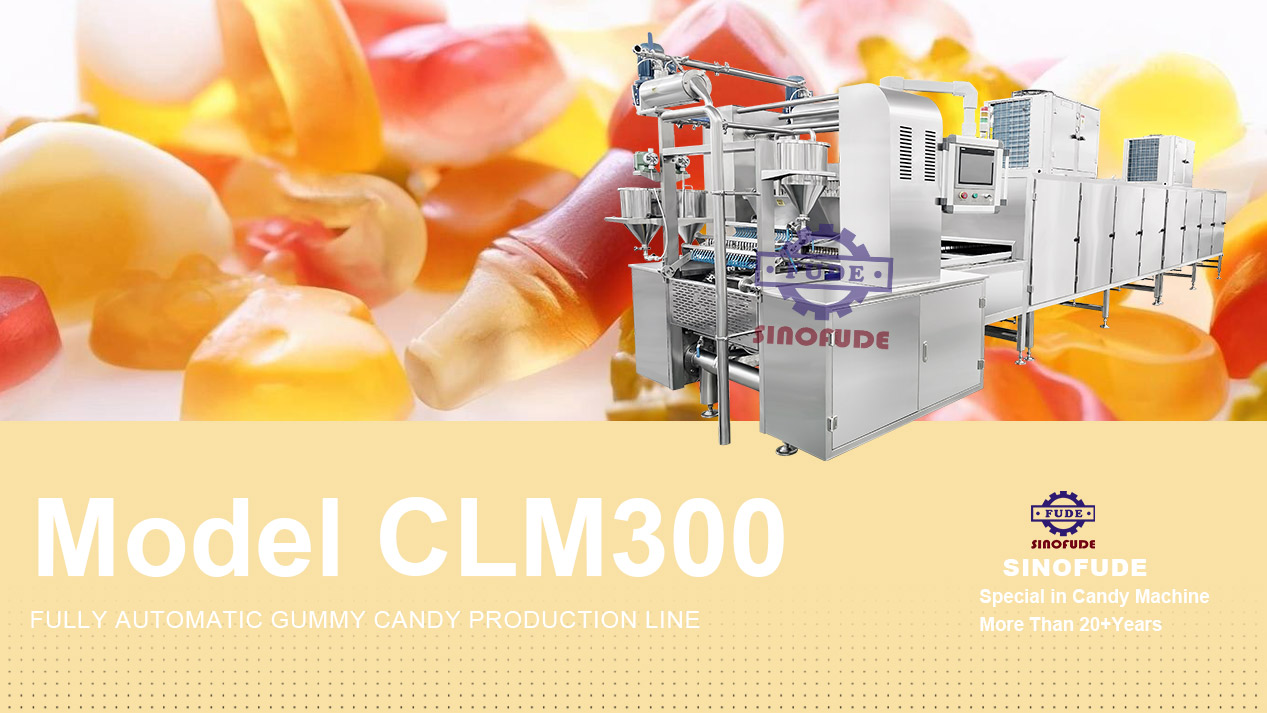

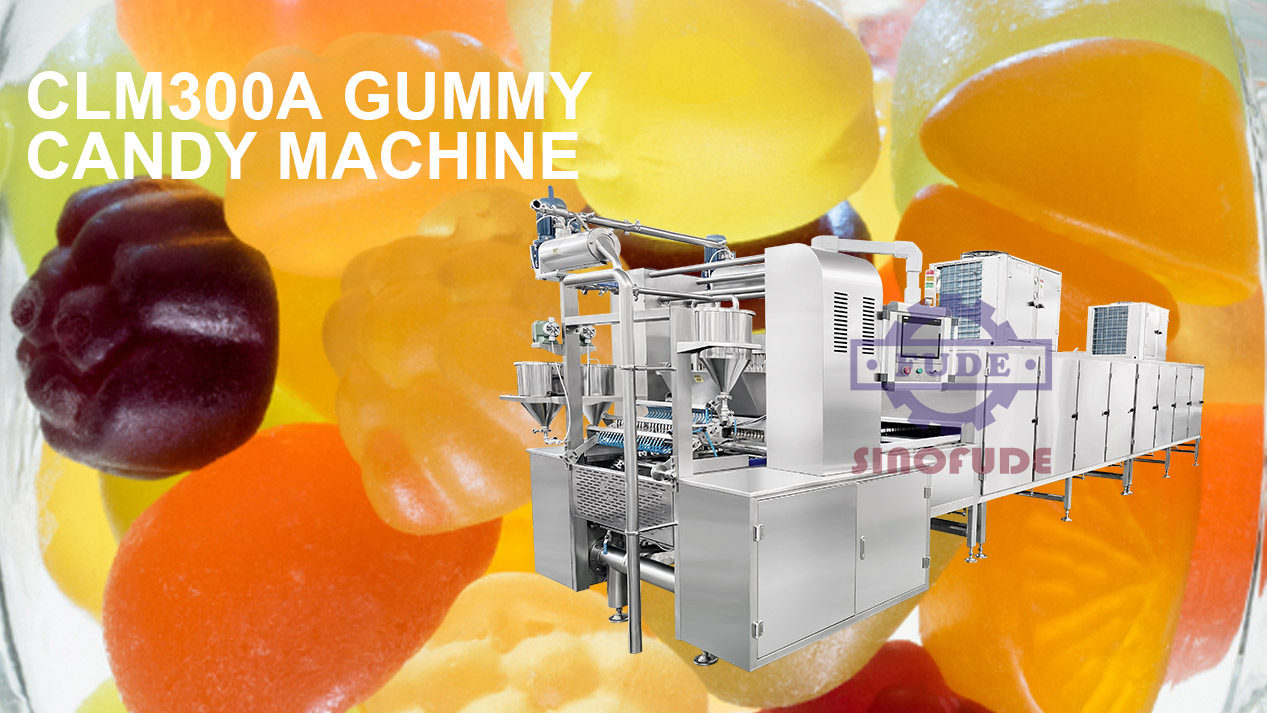

CLM300 Gummy making machine

Name: CLM300 Gummy making machine
Uploaded: 2023-01-29T11:07:33+08:00
Duration: 1 min 8 s
Description: CLM300 Gummy candy production line line is an ideal equipment which can produce high quality gummies with the saving of both the manpower and the space occupied.

CLM300 Gummy candy production line line is an ideal equipment which can produce high quality gummies with the saving of both the manpower and the space occupied.

SEND INQUIRY NOW

Parameters of the whole production line：

Capacity (kg/h)	300
Depositing stroke (Pcs)	60
Pcs of molds Short type Long type	260 780
Chilling Capacity	15PH
Length of the whole line (m)	8m or 10m
Electric power needed	40-75kw
Compressed air consumption Compressed air pressure	0.80m3/min 0.4-0.6 Mpa
Gross weight (Kgs)	Approx. 9000

SEND INQUIRY NOW

Product Details

CLM300 Gummy candy production line line is an ideal equipment which can produce high quality gummies with the saving of both the manpower and the space occupied. This depositing line consists of jacket dissolving cooker, lobe pump, storage vessel, discharging pump, color & flavor dosing system, Infused system,cooling tunnel, electric control cabinet, etc.

CLM300 Gummy making machine

96,000-112,000pcs gummy candy per hour, 300kg/h

Kitchen system

200L dissolving tank (3 layers ) *1

200L storage/mixing tank (3 layers]) *1

Transfer pump (lobe) *1

VFD for transfer pump (for syrup) *1

Electric Control Cabinet *1

Jacketed pipes and tempered heating system *1

It can using for cooking candy syrup,dissolving gelatin ,storage the syrup to guarantee continuous working.

Depositor line

1. CFA system;

2. Depositor drive system;

3. Multi-language for PLC program;

4. Molds

5. Demoudling system

6. No sticky belt

7. oil sprayer system
