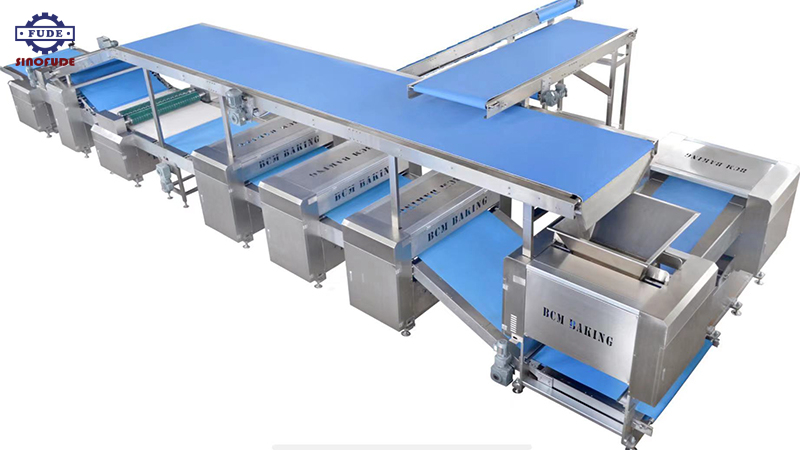

Introduction:Hard Biscuit Sheeting and Roller Cutting unit (for Hard biscuit making)
The machine is used for rolling dough to specific thicknesses, ensuring the dough sheet is even and elastic. The roller is made of an alloy steel with a high hardness and no deformation. The conveyor belt is equipped with an automatic tensioning devise and automatic deviation rectification device to ensure reliable conveyance. Speed and dough thickness parameters are clearly displayed on the screen and easy to adjust.

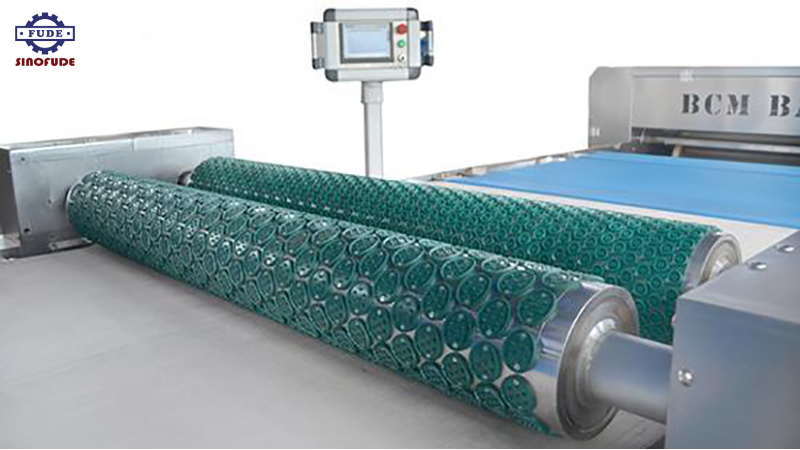

The roller cut forming machine is designed to form different biscuit types. It carries out a variety of processes, including printing, forming, and demolding. Material feeding and forming speed are both adjustable, while parameters such as speed and distance between the roller and roller mold are clearly displayed on screen. The conveyor belt is equipped with an automatic tensioning device and automatic deviation rectifying device to ensure a reliable conveyance performance.
Model | Capacity | Voltage | Power | Weight | Measurement |
GQ250 | 100kg/h | 380V | 1.5kw | 1000kg | 4500×750×1400 |
GQ400 | 250kg/h | 380V | 4.1kw | 2000kg | 5000×820×1600 |
GQ600 | 500kg/h | 380V | 5.5kw | 2600kg | 6500×920×1750 |
GQ800 | 750kg/h | 380V | 12kw | 3000kg | 7000×1020×1750 |
GQ1000 | 1000kg/h | 380V | 18kw | 3500kg | 7000×1220×1750 |
GQ1200 | 1250kg/h | 380V | 20kw | 4000kg | 7000×1420×1750 |
GQ1500 | 1500kg/h | 380V | 28kw | 5000kg | 7000×1520×1750 |
