Advance Gummy Production Line
SINOFUDE have experience in gummy manufacturing equipment for more than 30 years.
Language
SINOFUDE have experience in gummy manufacturing equipment for more than 30 years.
This part is used for weighing the main raw materials, such as sugar, glucose syrup and gelatin pectin and other gel. Contains elevator, weighing tank, mixing tank, storage tank. (For reference only, the specific configuration needs to be determined according to the specific recipe and process)
A gummy candy production line designed specifically for gummy candy manufacturers. With this gummy machine, you can produce up to 600 kg of gummy candies per hour at high speed, efficiency and reliability. It is easy to operate and requires very little maintenance, so if you are looking for an automated, high-quality gummy candy production line, the CLM600 is a good choice. You can produce gummy candies of various shapes and sizes with this gummy making machine.
Features of gummy machine：
1. Using PLC, the performance is more stable, and programming automatically controls the vacuum sugar boiling temperature, time, insulation temperature and pouring speed.This gummy bear machine has advanced technology, which can increase production efficiency and reduce costs.
2. The large touch screen displays the process flow chart, working status of each part, setting and display of parameters such as temperature and pouring speed, making it easier for users to operate and master;The whole gummy bear equipment is designed with a reasonable structure and is easy to operate and maintain. The operation panel is located on the left side of the gummy bear machine to facilitate one-person operation.
3. The production capacity of series products can range from 150kg to 600kg per hour;
4. All parts of the gummy manufacturing machine are made of stainless steel 304, which is safe to use for food processing. The production process is controlled by PLC, which ensures that all products are of high quality.Frequency conversion speed regulation controls the accurate flow of sugar liquid, and the quality of sugar paste is stable;
5. Conveyor chain belt, cooling system, and double demoulding mechanism ensure demoulding;
6. The dynamic mixer completes the quantitative addition and mixing of flavors, pigments, and acids online;
7. The optional chocolate quantitative filling system can produce chocolate-filled candies;
8. Candies of various shapes can be produced according to different molds;
9. By replacing some of the cooking equipment and molds, the candy production line can produce soft candies, hard candies, spherical lollipops, flat lollipops, etc.
Model | CLM600-A |
Capacity | 600 |
Depositing stroke (Pcs) | 80 |
Pcs of molds | 520 Long type |
Chilling Capacity | 20HP |
Electric power needed | 45-80kw |
Compressed air consumption | 1.20m3/min |
Gross weight (Kgs) | Approx.12000 |
CLM600 is a highly automatic and high capacity gummy candy production line that SINOFUDE is proud of

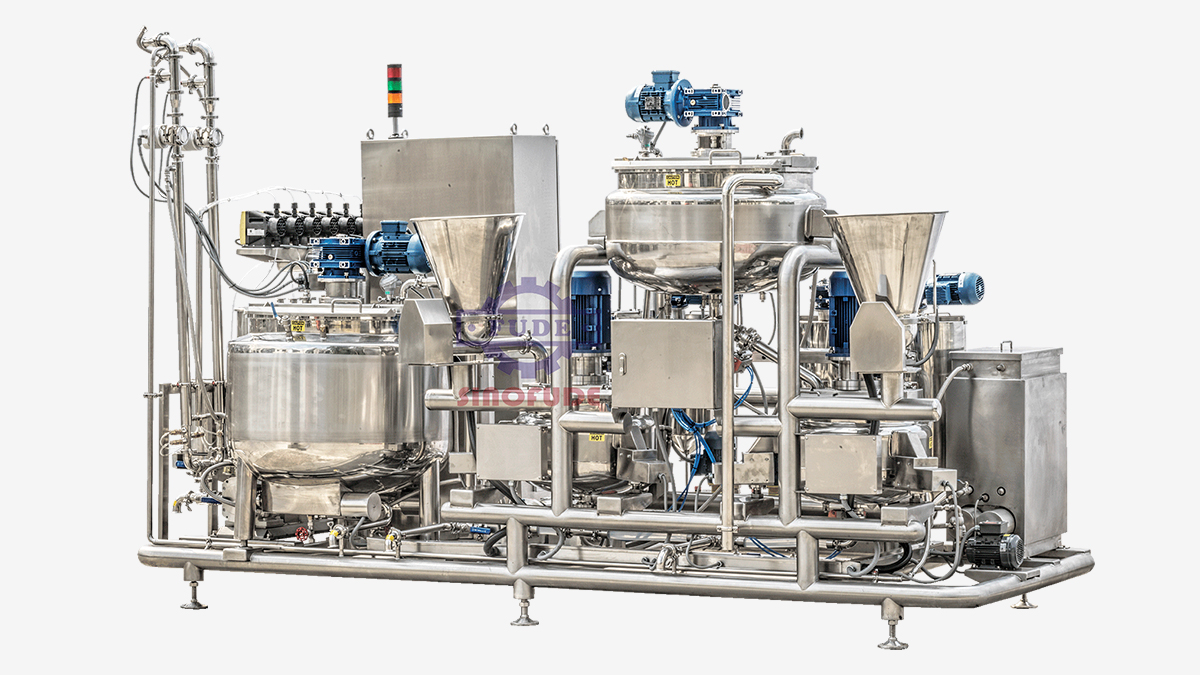

Weighing and cooking system
This part is used for weighing the main raw materials, such as sugar, glucose syrup and gelatin pectin and other gel. Contains elevator, weighing tank, mixing tank, storage tank. (For reference only, the specific configuration needs to be determined according to the specific recipe and process)

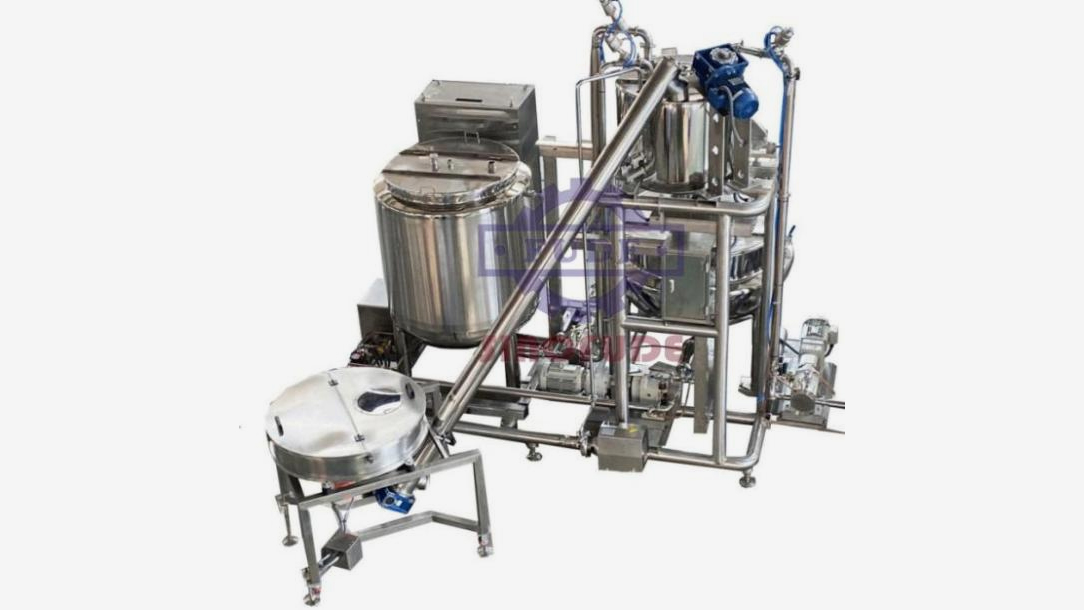

CFA Mixing system
This part is used for mixing and adding flavors, colors, acid and some functional substances, which can precisely control the amount of additives and make the syrup fully mixed without being affected by any external factors.

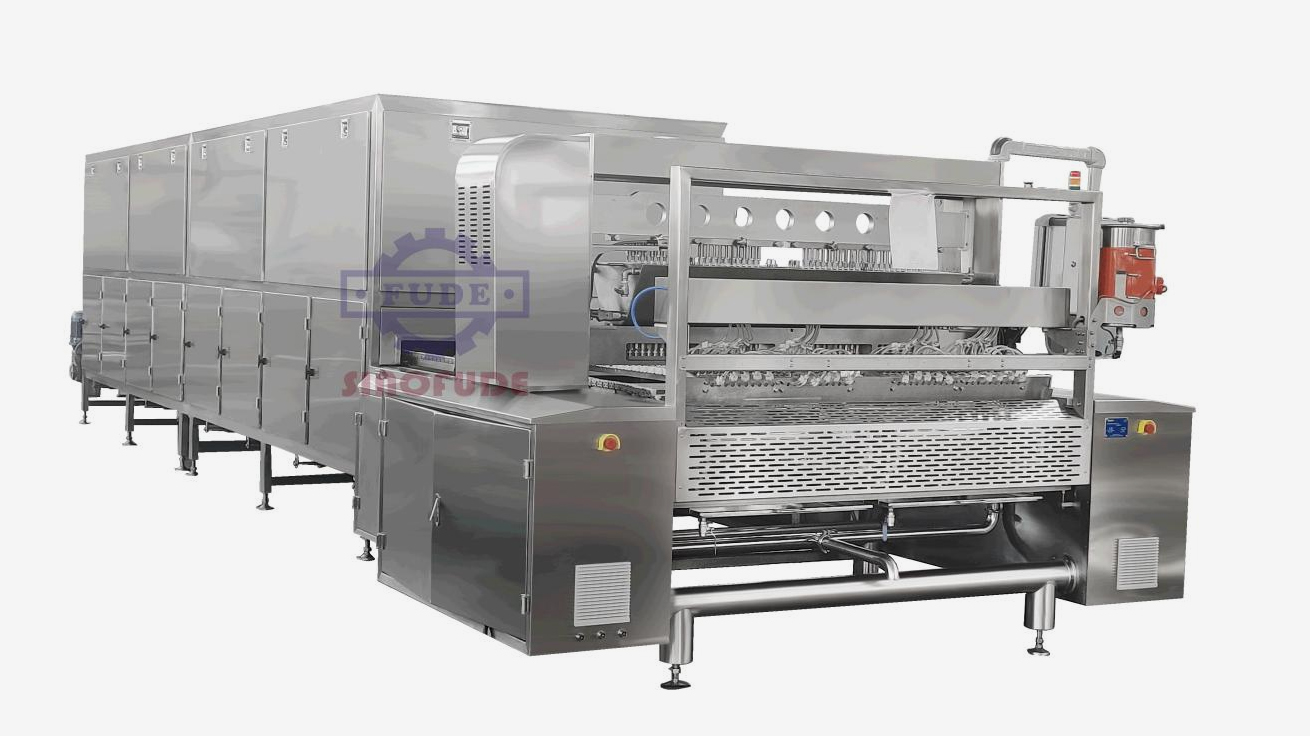

CLM600 Depositing Machine
Sinofude self-developed high-quality, high-yield, highly-automated gummy candy production line. The whole gummy proction line is designed according to pharmaceutical machinery standards, SUS304+SUS316 stainless steel, in line with pharmaceutical and food safety. Precise depositing, easy to clean, no hygienic dead ends. It is an excellent equipment for high-capacity production of ordinary gummy candy and health-care gummy candy.

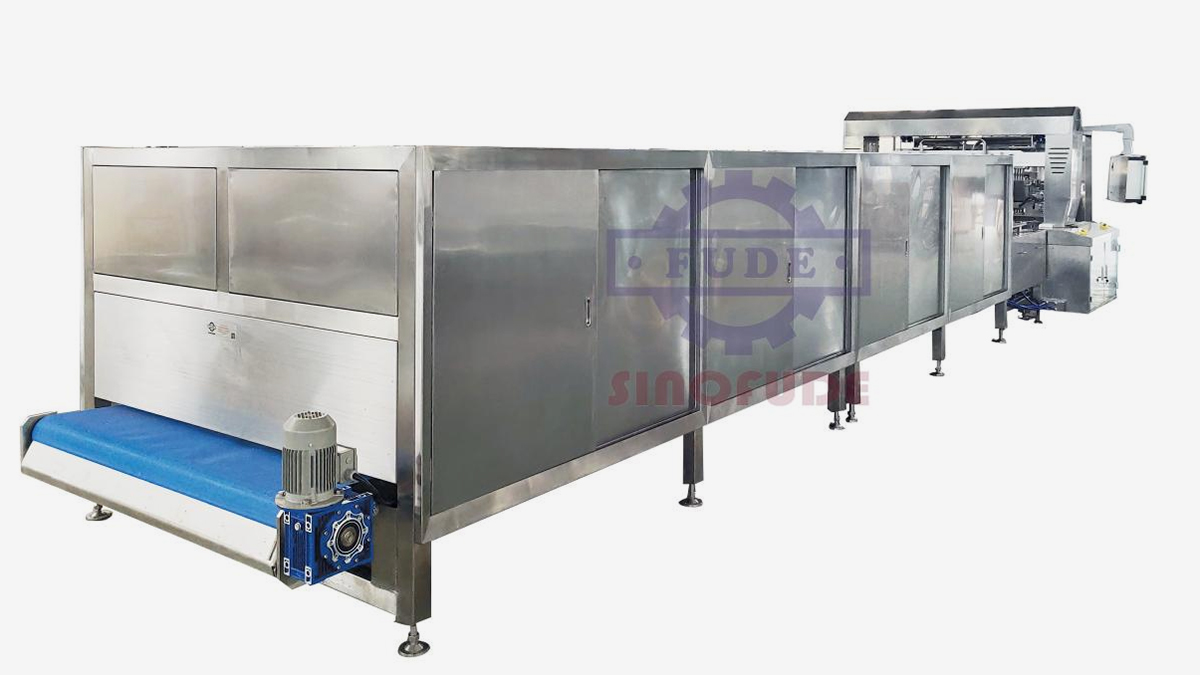

Depositing Machine
Advance type machine equipped with 2 layer cooling, the air recycling system and mold conveyor system separated by a stainless steel clapboard, which prevent the dust drop to the candy surface.Cold air will convey to the candy convey system by the 2 end of the cooling tunnel.The 2 guide rail of the back side of the cooling tunnel equipped with automatic tension device, which protect the chain and prolong the service life. Demold device with tank chain demolding and brush .PU conveyor with diamond pattern, which prevent the candy stick on the conveyor, it’s easy to clean and with longer service life.
Shanghai Fude Machinery Manufacturing Co., Ltd. automatic soft candy production line integrates mechanical, electrical and pneumatic control, with a reasonable and compact structure and a high degree of automation. It has high production efficiency and can produce hard candies, lollipops, sandwich candies, gelatin soft candies, pectin soft candies, and carrageenan soft candies. Single-color, double-flavor and double-color spray flowers, double-flavor and double-color double-layer, three-flavor and three-color spray flowers, as well as crystal candies, sandwich candies, striped candies, and Sioke, etc. The candies produced by Sinofude's automatic soft candy pouring production line have the characteristics of crystal smoothness, clear spray stripes, stable filling amount and position, and good taste, and are very popular among domestic and foreign customers.
