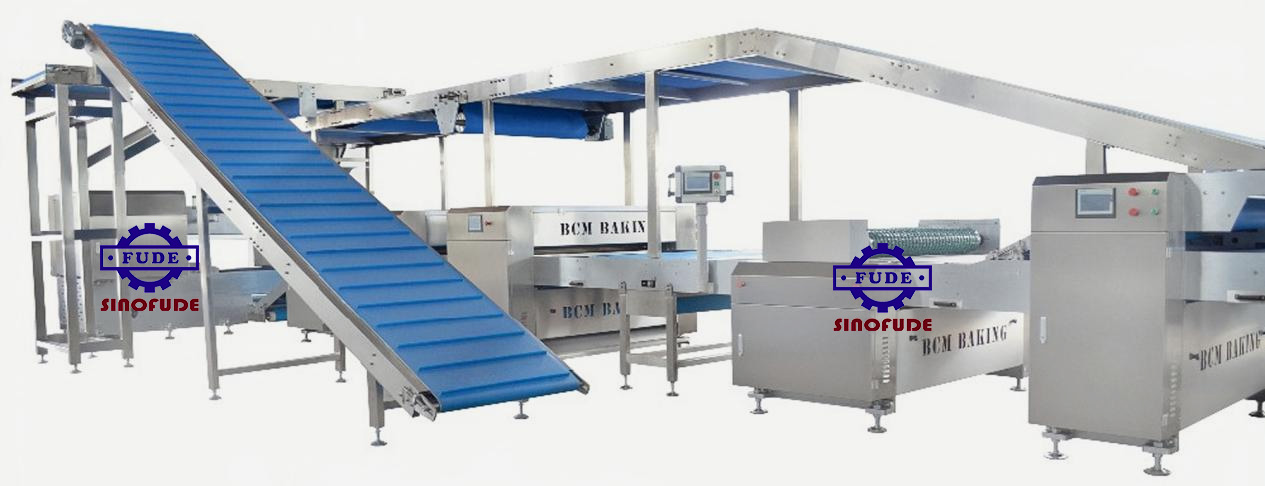

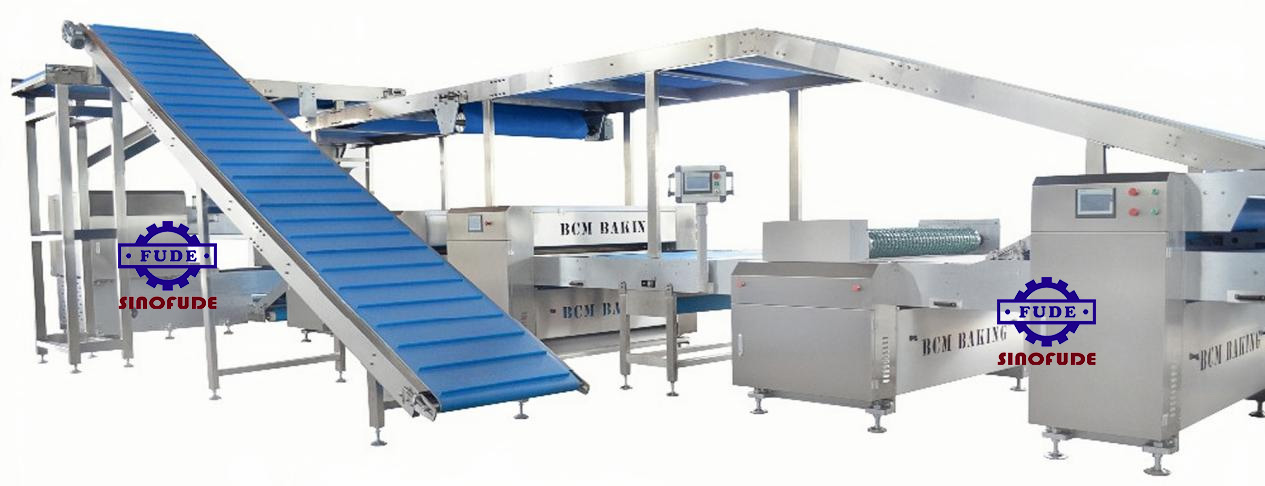

Biscuit can be grouped into hard biscuit、soft biscuit、 cookie biscuit, according to the formula, process, and different forming method.Automatic biscuit production line is generally composed of a feeding machine (if producing the soda biscuit or chocolate coated biscuit, another lamination process is needed a set of dough roller, through the dough rolling and dough sheeting, then through the roller cutting machine, rest material recycling device, inlet oven machine, the entire biscuit forming line. -or soft biscuit and cookie biscuit production line.only the forming machine and inlet oven machine can be the whole forming process. In order to increase the biscuit types and characteristics. customers can allocate the sugar & salt sprinkling machine, egg spraying machine, calico printing machine, etc. The oven is to make the formed biscuit into delicious food. You can choose different types of bakery oven (electric/gas diesel/thermal oil for baking different types of products. Dough rolling width ranges from 250mm to 1500mm(you have special needs, we can customized for you, we are one of the most professional biscuit production line manufacturers in China with over 30 years of experiences).


BCQ-250

BCM250

BCM480

BCM600

BCQ800

BCQ1000

BCQ1200

BCQ1500

Production capacity (kg/h )

250

480

600

750

1000

1250

1500

Total length (mm)

29600

64500

85500

92500

125000

125000

150000

Whole line power (kw)

105

190

300

400

500

600

750

Whole line weight (kg)

6000

12000

20000

28000

35000

45000

55000

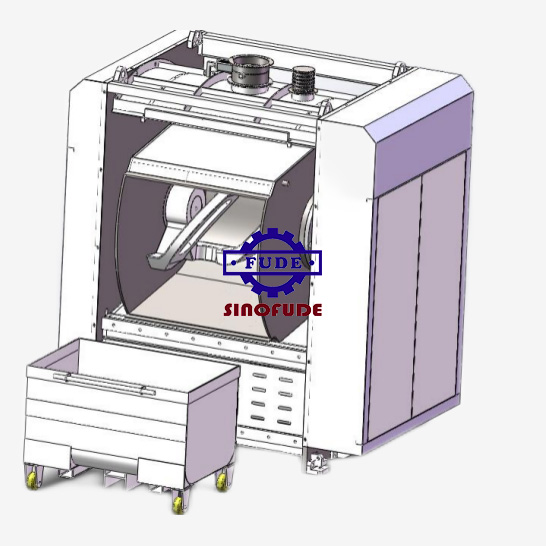

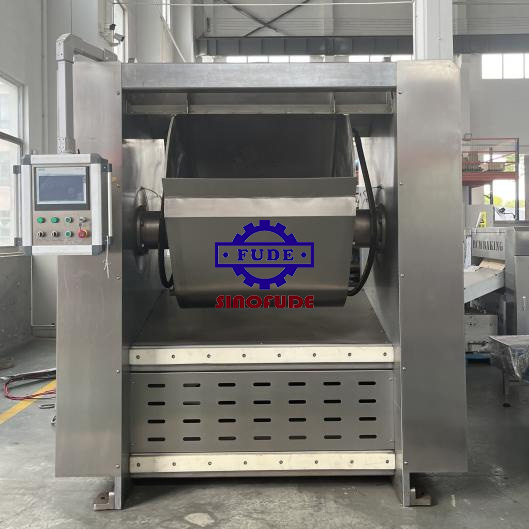

Horizontal dough mixer

The horizontal noodle kneading machine is a fully automatic noodle processing equipment. The main function of the horizontal noodle kneading machine is to mix flour and water evenly, instead of manual noodle kneading, reduce labor intensity, and meet people's food hygiene requirements. The horizontal dough kneading machine adopts manual tipping bucket, open gear transmission, high efficiency, strong adaptability, compact structure, good sealing, uniform kneading, convenient inversion, simple operation, low power consumption, low noise, etc. The biscuit manufacturing equipment is widely used in western food restaurants, cake shops, casual fast food restaurants, bakeries, restaurants and other food units.



Specification Type

Quantity of mixing

Time of Mixing

Power supply

Power of main motor

Measurement L×W×H

CHWJ25

25kg

10-25

1.5kw

-

880×460×886

CHWJ50

50kg

10-25

3kw

0.37kw

1110×630×1070

CHWJ75

75kg

10-25

4kw

0.37kw

1188×710×1220

CHWJ100

100kg

10-25

5.5kw

0.37kw

1250×740×1300

CHWJ125

125kg

10-25

7.5kw

0.37kw

1540×800×1375

CHWJ150

150kg

10-25

9.5kw

0.37kw

1400×900×1450

CHWJ250

250kg

10-25

11kw

0.55kw

1600×1000×1650

CHWJ500

500kg

10-25

45kw

2.2kw

2960×1650×2632

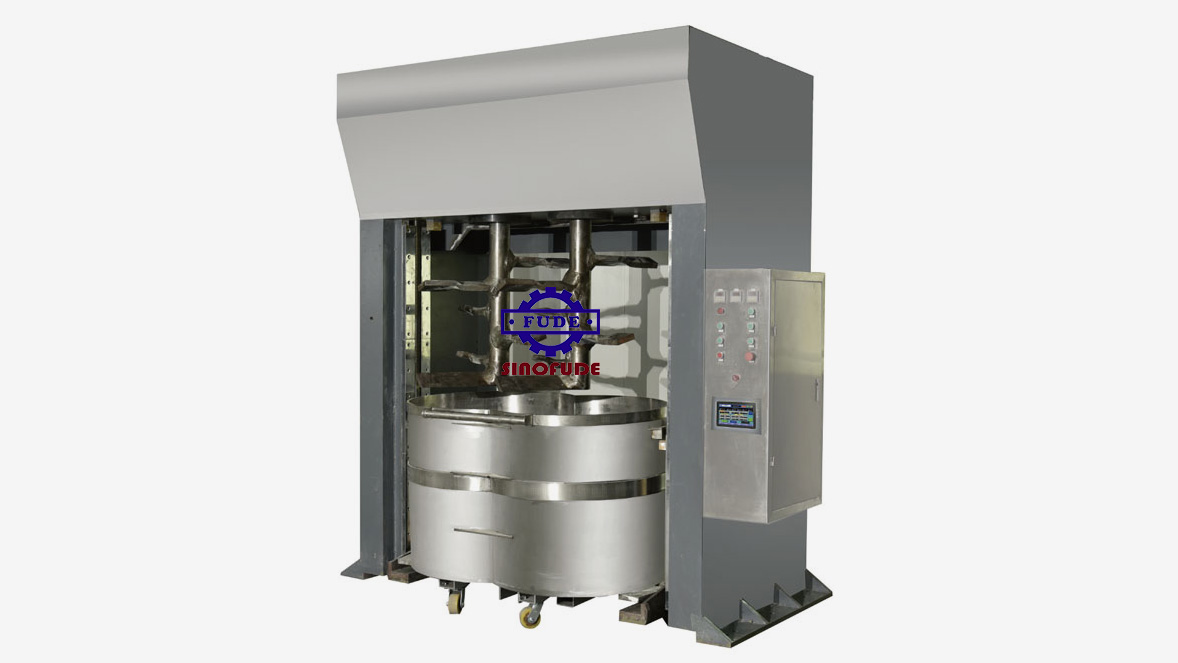

Vertical dough mixer

The soft dough biscuit production line equipment of the vertical noodle machine is mainly, its main function is wheat flour and food oil, food sugar and its food and auxiliary materials, etc. Pasta and other foods.

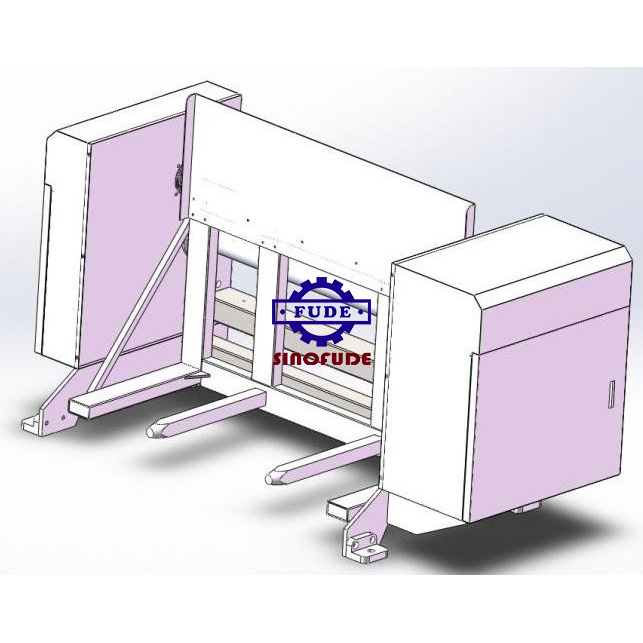

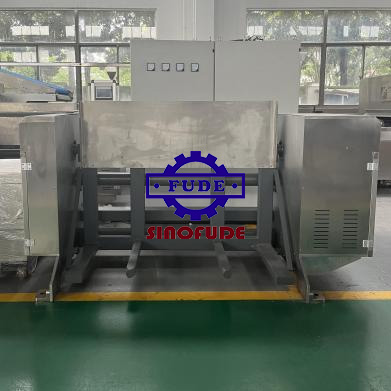

Pouring machine

Each batch of dough is conveyed to the dumping machine through the transfer bucket.

The dough in the barrel is poured into the *U*-shaped dough placing table through the switch control.

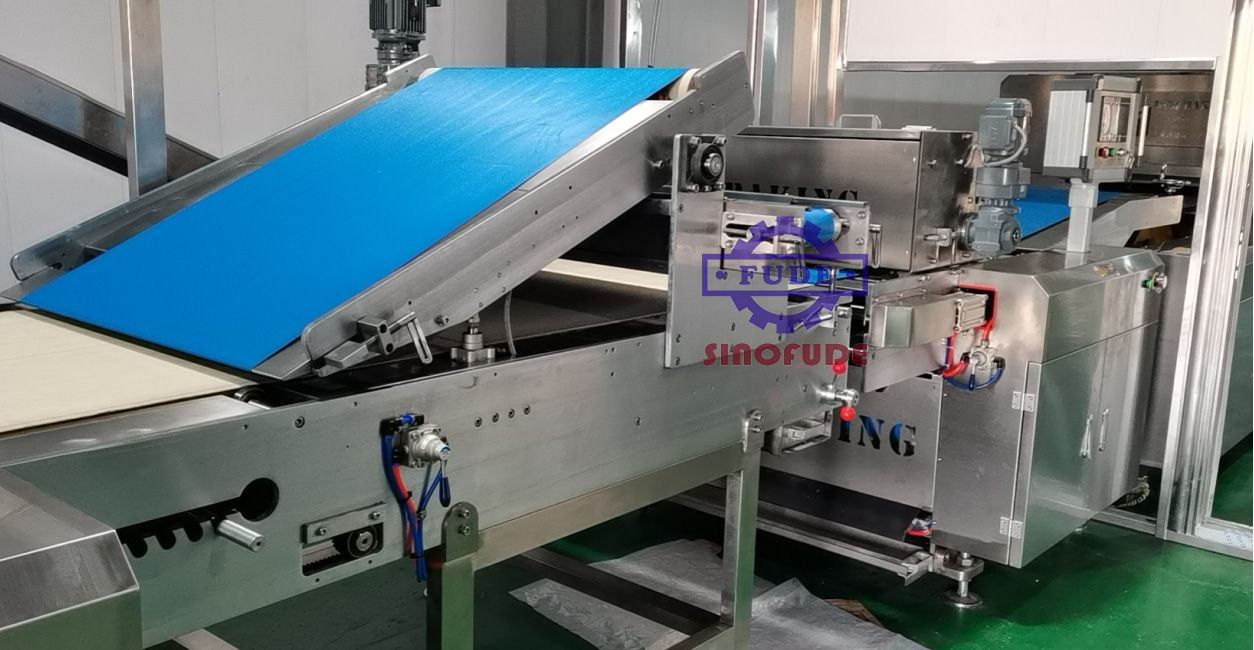

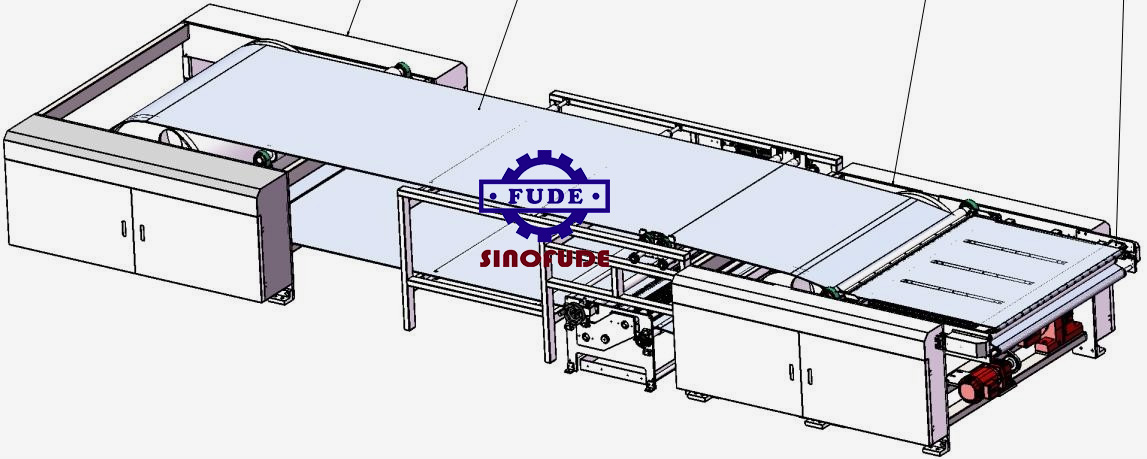

Automatic feeder and cutting system

The mixed dough is conveyed to the forming machine through the dough conveying system. It is pressed by rollers, and then formed by a roller cutting mold. The stroke biscuit is green and baked to make a tough biscuit.



Specification
     Type

Capacity/hour

Power

Weight

Measurement

L×W×H

250

100kg

1.5kw

1000kg

4500×750×1400

400

250kg

4.1kw

2000kg

5000×820×1600

600

500kg

5.5kw

2600kg

6500×920×1750

800

750kg

12kw

3000kg

7000×1020×1750

1000

1000kg

18kw

3500kg

7000×1220×1750

1200

1250kg

20kw

4000kg

7000×1420×1750

1500

1500kg

28kw

5000kg

7000×1520×1750

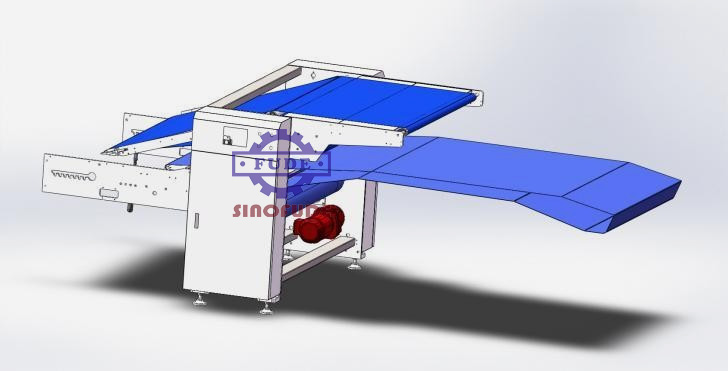

Dough separating unit

The separator separates the roll-cut dough from the roll-cut biscuit embryo, keeps the separated biscuit embryo intact, and recovers the remaining material to continue pressing the skin to make biscuits. The part of the separation slope can be adjusted back and forth horizontally, and the separation position can be adjusted according to the quality of the dough to achieve the separation effect. Equipped with horizontal recycling, the leftover material is sent to the side recycling machine or the front recycling machine, and the horizontal recycling can operate in both directions, which is convenient for processing and recycling the leftover material.



Dough recycling machine

After biscuits forming, the rest dough will be back to the Lamination machine, also used for feeding of  biscuit dough.

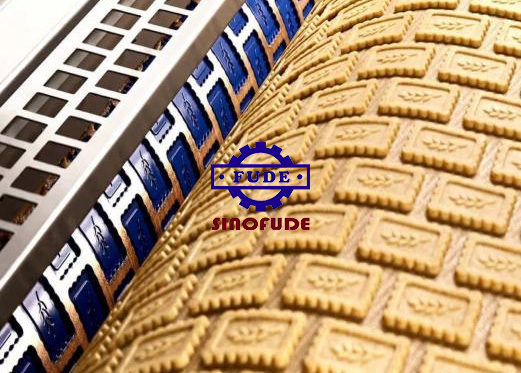

Rotary Moulder

Rotary Moulder is used for forming soft biscuit, which contains much oil and fat. The dough would form as the shape of biscuit and drop on the conveyor belt to the next machine.The gap between material enter roller and mold can be adjusted by hand wheel The pressure of rubber roller also can be adjusted by hand wheel The scrapper can be adjusted up and down by hand wheel The angle of scrapper can be adjusted by hand wheel .Material hopper can be free to flip and can be combined freely Conveyor belt is easy to change,power roller easy to disassemble Cover,supporting plate is stainless steel Pneumatic rectify deviation .



Specification

Type

Weight

Power

Weight

Measurement mm

L×W×H

250

100kg

2.2kw

500kg

2450×550×1400

400

250kg

3kw

750kg

2450×700×1400

600

500kg

3kw

900kg

2450×900×1400

800

750kg

4kw

1200kg

2450×1100×1400

1000

1000kg

4kw

1450kg

2450×1300×1400

1200

1250kg

4kw

1600kg

2450×1500×1400

1500

1500kg

5kw

1600kg

2450×1500×1400

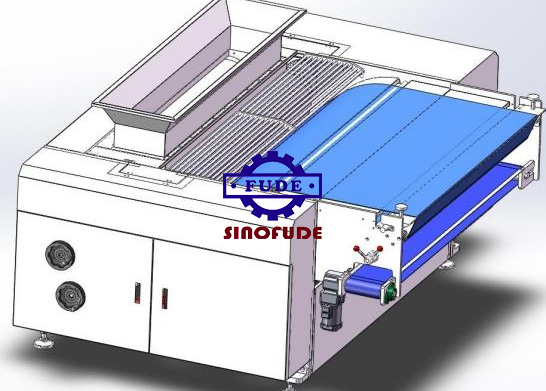

Salt/Sugar Sprinkler

Spray sugar or salt particle on the surface of biscuits to make the biscuits taste better. The extra sugar and salt particle will be on the tray, can be reuse.



Specification

Type

Power

Weight

Measurement mm

L×W×H

250

1.5kw

600kg

800×450×1550

400

3kw

700kg

800×650×1550

600

4kw

820kg

800×850×1550

800

4kw

950kg

800×1050×1550

1000

4kw

1050kg

800×1250×1550

1200

4kw

1200kg

800×1450×1550

1500

4kw

1350kg

800×1850×1550

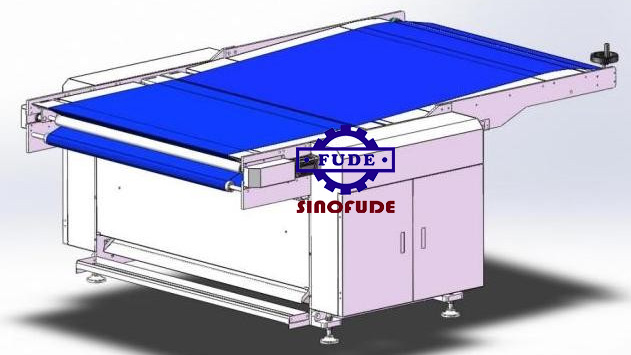

Inlet conveyor

Function: Transits the biscuit on to wire mesh of baking machine.The oven machine is the molding of biscuits or other baked products into the oven transmission device, by the big roller connected to the wire mesh belt biscuits continuous into the oven for baking.

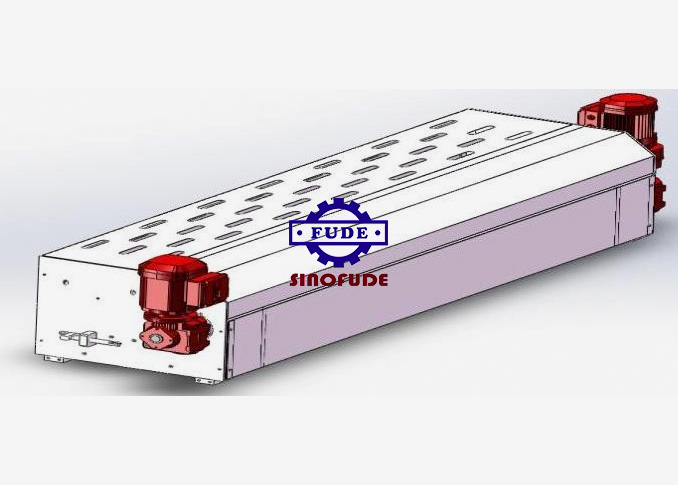

Belt driven and tension unit

The equipment is provided with a power outage manual discharging mode.Carrying coal-scuttle to transmit and regulate finished products.


Specification

Type

Power

Weight

Measurement mm

L×W×H

250

2.2kw

250kg

1800×550×1300

400

3kw

400kg

1800×700×1300

600

3kw

550kg

1800×900×1300

800

4kw

700kg

1800×1100×1300

1000

4kw

850kg

1800×1300×1300

1200

5.5kw

1000kg

1800×1500×1300

1500

5.5kw

1100kg

1800×2430×1300



Electric Heating Oven

Electric heating oven is so called far infrared heating oven, mainly depends on electrical heated pipe. Main   features including: clean and sanitary, accurate controlled temperature, easy to operate, easily maintain and wide range of application.

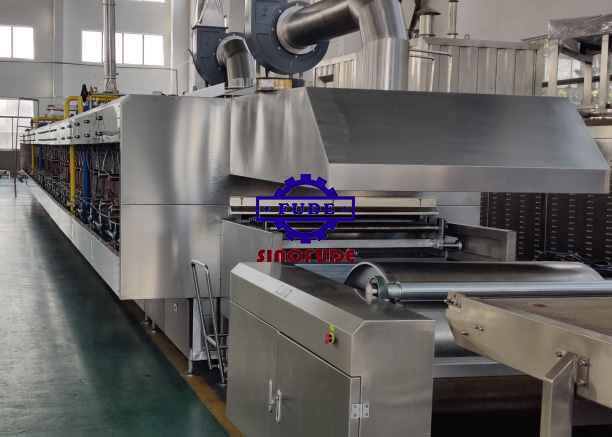

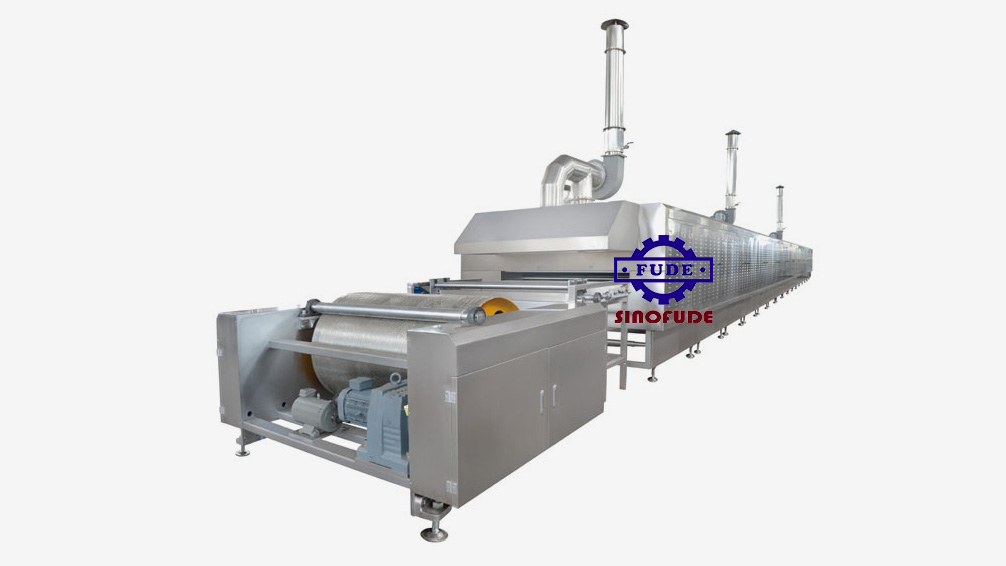

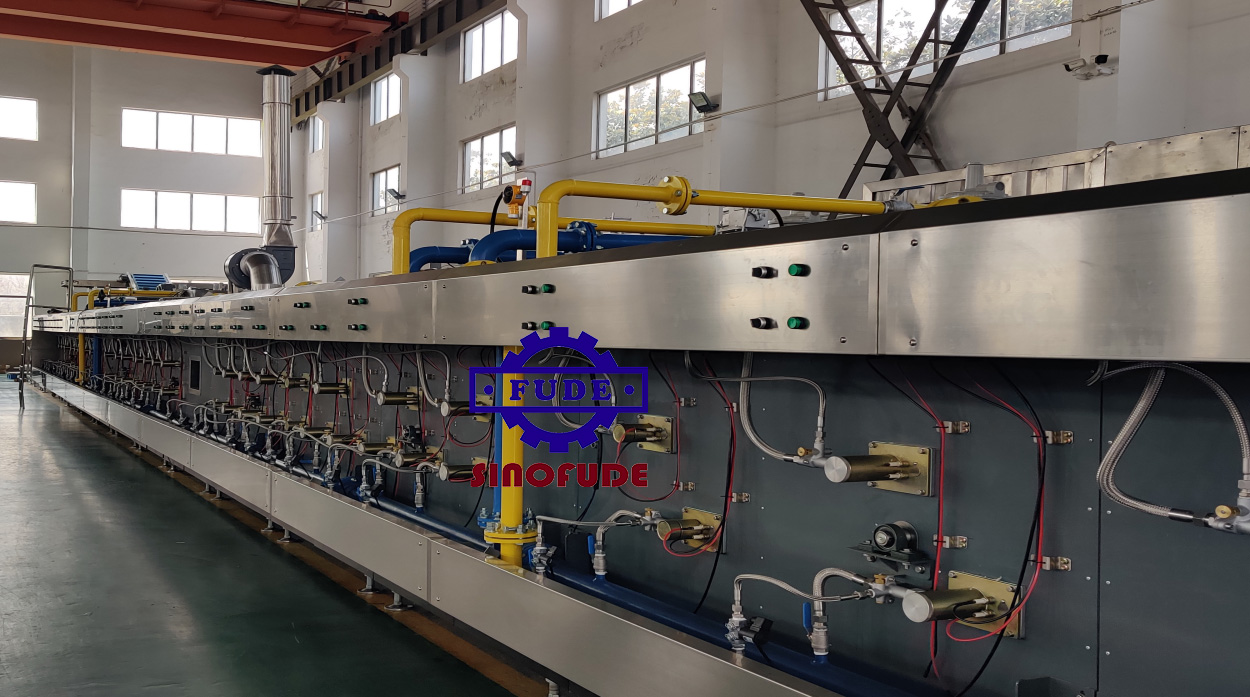

Gas/Diesel Fire Heating Oven

Fuels of natural gas, liquefied gas electic and diesel can be chosed as baking energy. Those can be light up  immediately, but for diesel based hot air circulation oven is necessary. Main features including: large capacity, fast production speed, high quality, accurate controlled and neat.


Technical parameters


Specification

Type

Capacity

Oven       length

Temperature Zones

Natural gas             consumption

Diesel
     consumption

Power
     consumption

600

600kg

50m

4

12-20kg/h

20-45kg/h

300kw/h

800

800kg

60m

4

15-25kg/h

30-55kg/h

400kw/h

1000

1000kg

60m

4

20-35kg/h

30-60kg/h

500kw/h

1200

1200kg

60m

4

25-40kg/h

40-70kg/h

600kw/h

1500

1500kg

70m

5

30-50kg/h

50-80kg/h

7500kw/h

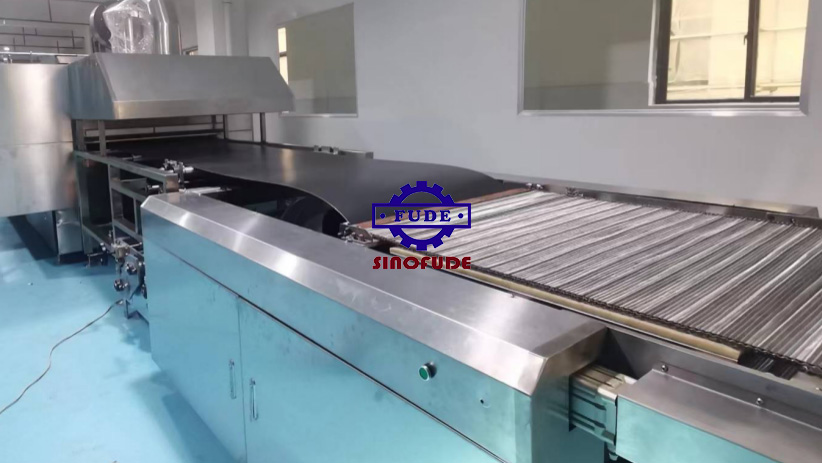

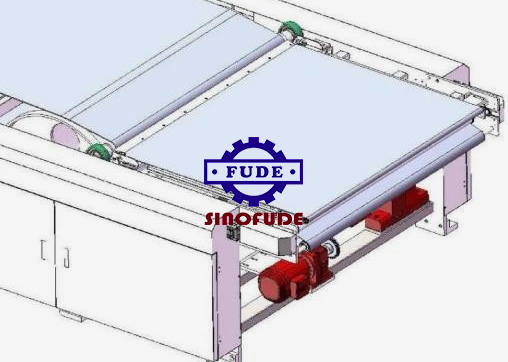

Outlet conveyor

Conveying the biscuits from the oven to the oil sprayer ensures a longer shelf life and a better flavor for the biscuits. The machine works smoothly, with low noise, convenient operation and large conveying capacity.

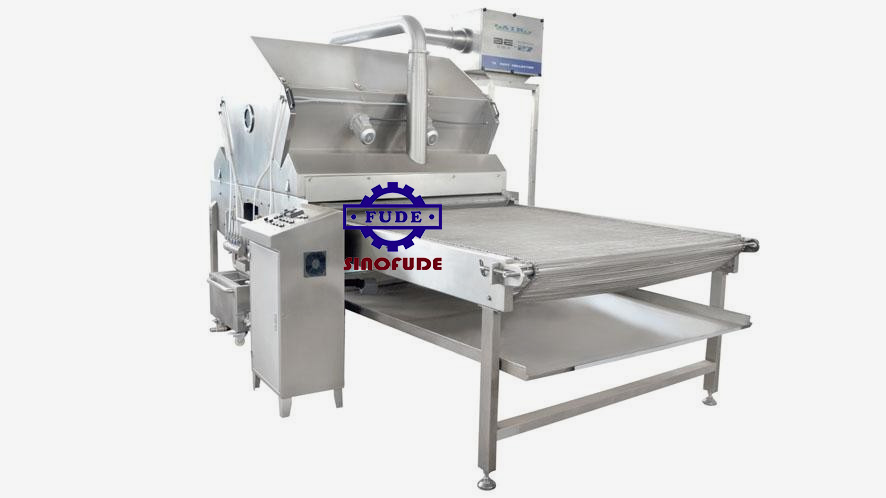

Oil- Spraying Machine

Function: the hot biscuits which are just out of the oven are immediately put into the oil-spraying process, which is necessary for production of high-grade biscuit, to better improve grades and colors of biscuit.



Specification

Type

Power

Weight

Measurement mm

L×W×H

250

5kw

260kg

1650×500×1550

400

7kw

400kg

1650×650×1550

600

9kw

560kg

1650×850×1550

800

12.5kw

700kg

1650×1050×1550

1000

12.5kw

900kg

1650×1250×1550

1200

15kw

1100kg

1650×1450×1550

1500

18kw

1500kg

1650×1860×1550

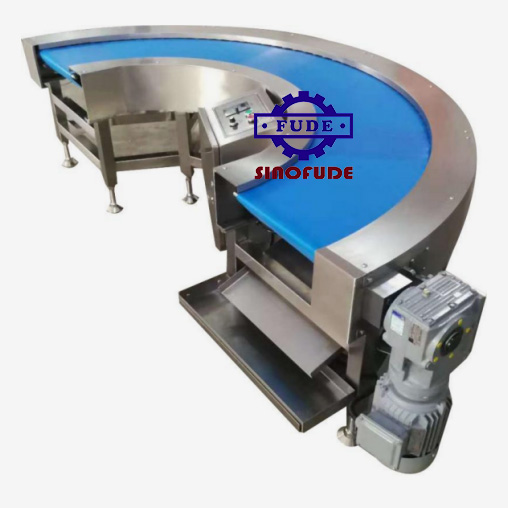

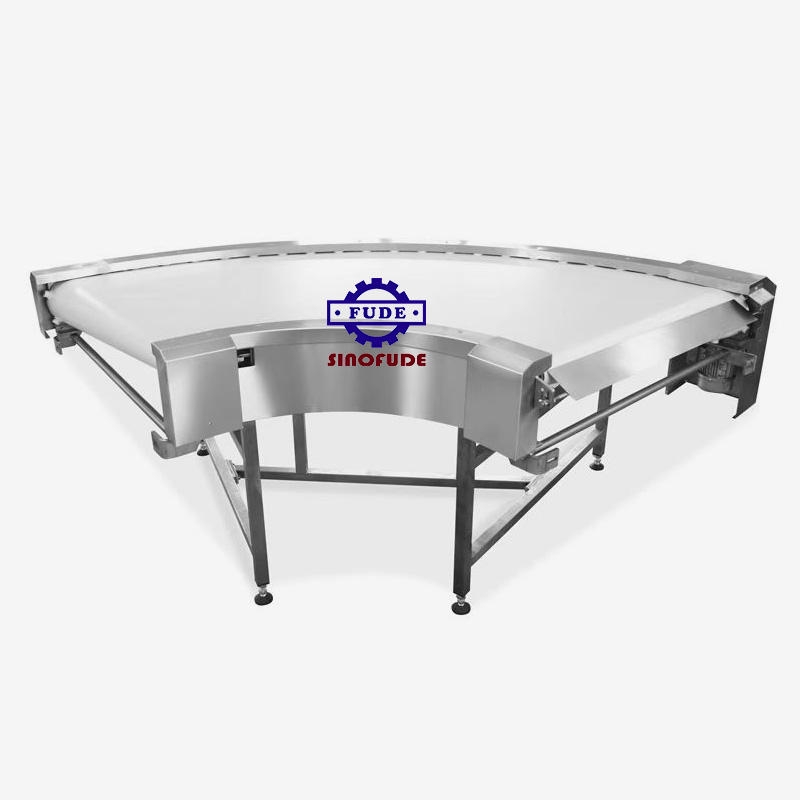

Swerve Conveyor(L Or U Turn)

Function: The swerve conveyor is optional equipment in automatic biscuit production line. When the space (workshop) is not long enough to place the production line straight, then L swerve or U turn conveyor need to be adopted.

Technical parameters


Specification

Type

Power

Weight

Measurement mm

L×W×H

400

2.2kw

320kg

3500×1700×800

600

3kw

420kg

4200×2100×800

800

5kw

490kg

4800×2400×800

1000

5kw

580kg

5200×2600×800

1200

5kw

660kg

6000×3000×800

1500

5kw

769kg

7200×4200×800

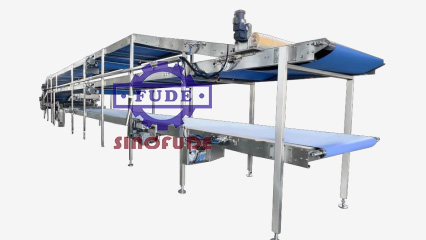

Cooling conveyor

This conveyor is used for cooling down the biscuits after baking to enable the products complete cool down for arranging and packaging. The design of this cooling conveyor may be varied subject to the different requirements and site environment.

The layout could be straight line, three-layer ”z” shape or suspension type structure The cooling conveyor is used for normal cooling. Made of stainless steel square pipes of proper strength, the cooling conveyor is structurally simple and compact. The whole machine looks light and stable, and is easy to install and remove.

Conveyor belt: PU belt, automatic deviation adjustment, pneumatic tension can also refer to packing table.

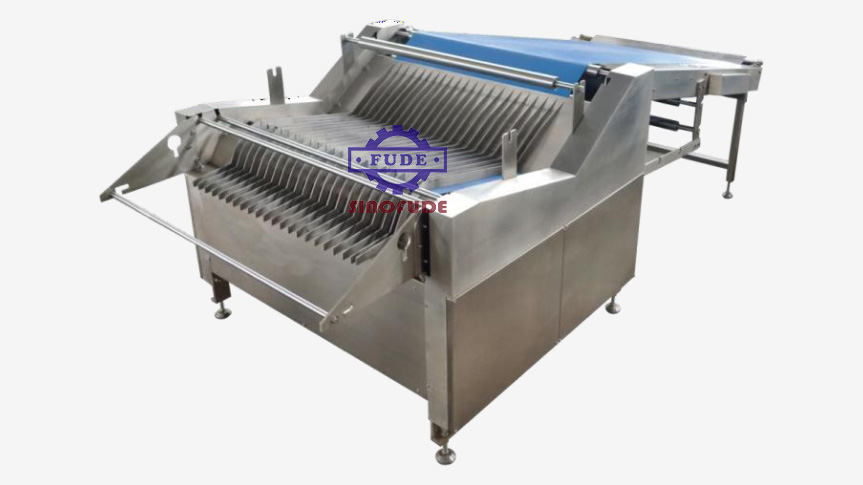

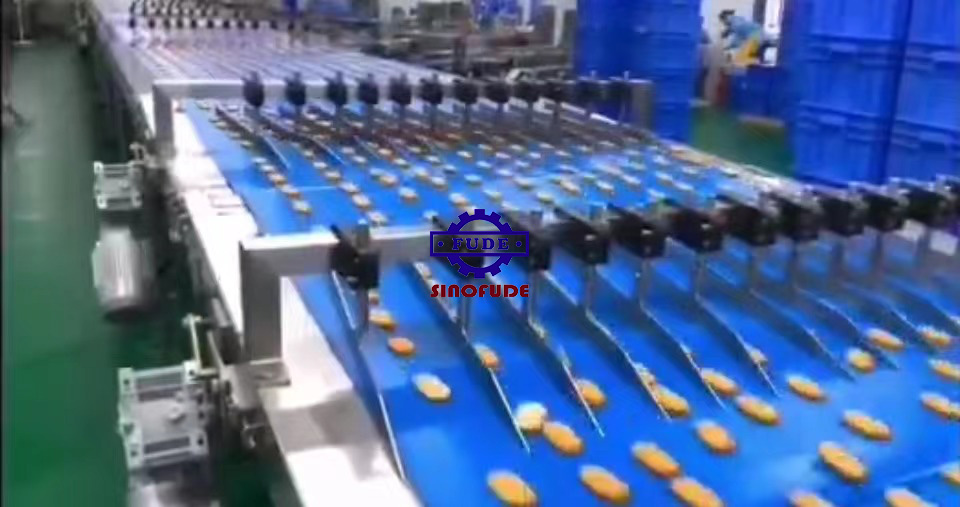

Stacking machine

This machine is a new generation of equipment that stands up and closely arranges the cooled biscuits into a number of neat rows, which can effectively improve the efficiency of biscuit packaging. Using advanced frequency converter for stepless speed regulation, stable speed, high efficiency and energy saving; It is equipped with magnetic separator, which can adjust the width quickly. It has special structure design, suitable for ultra-thin and other cookies of different dimensions.



Specification

Type

Capacity

Power

Weight

Measurement mm

L×W×H

400

250kg

2.2kw

360kg

2980×800×1350

600

500kg

4kw

480kg

2980×900×1350

800

750kg

4kw

600kg

2980×1200×1350

1000

1000kg

5.5kw

720kg

2980×1300×1350

1200

1250kg

5.5kw

840kg

2980×1500×1350

1500

1500kg

6.5kw

960kg

3400×2160×1180

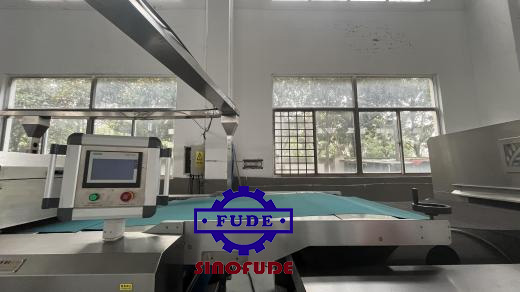

Packing table



It is used for checking the quality of biscuits before packaging. Equipped with an anti-biscuit-reversing device.

Conveyor belt Air cylinder tension, gear synchronization action at both sides and left and right, auto deflflection,each conveyor belt has installed auto deflflection at front and behind.With the diamond shape supporting arm, the supporting frame has little dust accumulation, and is easy to clean.
